Product Description

Details Images

Each number is different on BE

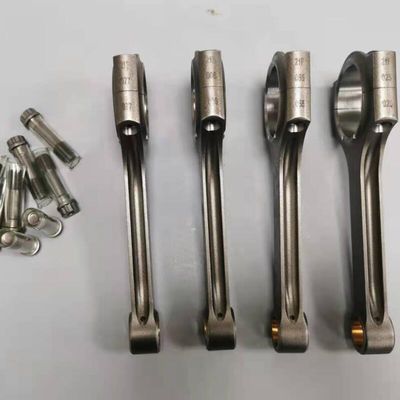

Forged connecting rod with 2 bolts

Section

Specification

Brand	JA
Original	Made In China
Beam type	H-beam
Center to Center Length	140.8mm
Big End Bore Diameter	43.01mm
Big End Width	17.8mm
Small End Bore Diameter	20mm
Small End Width	17.8mm
Connecting Rod Bolt Diameter	***
Approximate Connecting Rod Weight	***
Advertised Horsepower Rating	550hp
Material	Forged 4340 steel
Connecting Rod Finish	Shot-peened, Polished
Pin	Bronze wrist pin bushings
Wrist Pin Style	Floating
Weight Matched Set	Yes ,Balanced +/- 1g
Private Label	Yes, accept
MOQ	10 set

Packing & Delivery

Two type of forged connecting rod

Which packing do you prefer ? Each small box with 4 pcs as a set

Other products

Company Profile

"Guangzhou Cnflap Auto Parts Limited" as a professional leading engine parts manufacturer in China. We were established in 1995 and our main products include pistons, piston ring, cylinder liner, engine bearing, gasket ect In 2017, our another brand JA MODIFIED was borned. JA modified specialize for Forged piston and connecting rod business on racing and performance market. JA MODIFIED today is a manufacturing company capable of reserching and developing new or modified products to meet various customers' needs.

FAQ

Q1: What's the material for forged piston ? A1: material is 4032 Q2: Can you accept small quantity order ？ A2: Yes, if for standard model we can send it within 3 working days. Q3: Can you custom piston if supply sample? A3: Yes, we can customzied as your requirement and your sample or drawing when you reach our MOQ. Q4: How about the delivery time ? A4: About 15~25 working days for production, within 3 days for stock model . Q5: Would you send the sample before place an order ? A5: We can supply the sample for testing if have stock .But you have to pay the sample fee and express cost. when you play mass quantity, we can reduce the sample cost in mass order . Q6: What's your packing term ? A6: Genernally, we pack in neutral white boxes and cartons it suitable for long distance shipment. Q7: Can laser my logo on the piston? A7: Yes, we can do laser logo on piston top or above pin seat Q8: Could you make coating in skirt ? A8: Yes, but the price will be different from without coating. Q9: How about the payment term ? A9: By T/T. 30% as deposit. 70% balance payment before shipment . We will should you product pictures and packages if you need.
